SIDE-4/

ACCULOGIC, INC.

SIDE-4/ PLUS

Data bus:

16-bit, ISA

Size:

Half-length, full-height card

Hard drives supported:

Two IDE(AT) drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB or 1.44MB drives

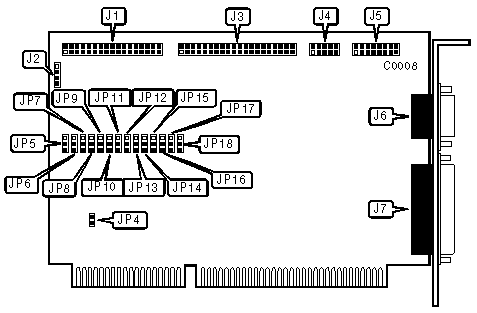

CONNECTIONS

Function

Location

34-pin control cable connector-floppy drive

J1

4-pin connector-drive active LED

J2

40-pin AT Interface (IDE) connector

J3

9-pin serial port 2-internal

J4

15-pin game port-internal

J5

9-pin serial port 1-external

J6

25-pin parallel port-external

J7

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»
I/O Channel Ready signal disabled

JP4

open

I/O Channel Ready signal enabled

JP4

closed

»
Floppy drive enabled

JP5

pins 1 & 2 closed

Floppy drive disabled

JP5

pins 2 & 3 closed

»
Floppy drive port address is 3F0-3F7h

JP6

pins 1 & 2 closed

Floppy drive port address is 370-377h

JP6

pins 2 & 3 closed

»
Single speed floppy drives supported

JP7

pins 1 & 2 closed

Dual speed floppy drives supported

JP7

pins 2 & 3 closed

»
Hard drive enabled

JP8

pins 1 & 2 closed

Hard drive disabled

JP8

pins 2 & 3 closed

»
IDE select mode enabled

JP9

pins 1 & 2 closed

Not used

JP9

open

»
Hard drive port address is 1F0-1F7h

JP10

pins 1 & 2 closed

Hard drive port address is 170-177h

JP10

pins 2 & 3 closed

»
Not used

JP11

open

»
IRQ14 normal

JP12

pins 1 & 2 closed

IRQ14 delayed until ACTIVE- signal is removed

JP12

pins 2 & 3 closed

SERIAL & PARALLEL PORT CONFIGURATIONS

Function

Location

Setting

»
Serial port 1 (CN6) enabled

JP13

pins 1 & 2 closed

Serial port 1 (CN6) disabled

JP13

pins 2 & 3 closed

»
Serial port 1 (CN6) set to COM1

JP14

pins 1 & 2 closed

Serial port 1 (CN6) set to COM3

JP14

pins 2 & 3 closed

»
Serial port 2 (CN4) enabled

JP15

pins 1 & 2 closed

Serial port 2 (CN4) disabled

JP15

pins 2 & 3 closed

»
Serial port 2 (CN4) set to COM2

JP16

pins 1 & 2 closed

Serial port 2 (CN4) set to COM4

JP16

pins 2 & 3 closed

»
Parallel port (CN7) enabled

JP17

pins 1 & 2 closed

Parallel port (CN7) disabled

JP17

pins 2 & 3 closed

»
Parallel port (CN7) address is LPT1

JP18

pins 1 & 2 closed

Parallel port (CN7) address is LPT2

JP18

pins 2 & 3 closed


Data bus:	16-bit, ISA
Size:	Half-length, full-height card
Hard drives supported:	Two IDE(AT) drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB or 1.44MB drives

CONNECTIONS
Function	Location
34-pin control cable connector-floppy drive	J1
4-pin connector-drive active LED	J2
40-pin AT Interface (IDE) connector	J3
9-pin serial port 2-internal	J4
15-pin game port-internal	J5
9-pin serial port 1-external	J6
25-pin parallel port-external	J7

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	I/O Channel Ready signal disabled	JP4	open
	I/O Channel Ready signal enabled	JP4	closed
»	Floppy drive enabled	JP5	pins 1 & 2 closed
	Floppy drive disabled	JP5	pins 2 & 3 closed
»	Floppy drive port address is 3F0-3F7h	JP6	pins 1 & 2 closed
	Floppy drive port address is 370-377h	JP6	pins 2 & 3 closed
»	Single speed floppy drives supported	JP7	pins 1 & 2 closed
	Dual speed floppy drives supported	JP7	pins 2 & 3 closed
»	Hard drive enabled	JP8	pins 1 & 2 closed
	Hard drive disabled	JP8	pins 2 & 3 closed
»	IDE select mode enabled	JP9	pins 1 & 2 closed
	Not used	JP9	open
»	Hard drive port address is 1F0-1F7h	JP10	pins 1 & 2 closed
	Hard drive port address is 170-177h	JP10	pins 2 & 3 closed
»	Not used	JP11	open
»	IRQ14 normal	JP12	pins 1 & 2 closed
	IRQ14 delayed until ACTIVE- signal is removed	JP12	pins 2 & 3 closed
