ADAPTEC, INC.
AHA-1510
|
Data bus: |
16-bit, ISA |
|
Size: |
Half-length, full-height card |
|
Hard drives supported: |
Up to seven SCSI devices |
|
Floppy drives supported: |
None |
|

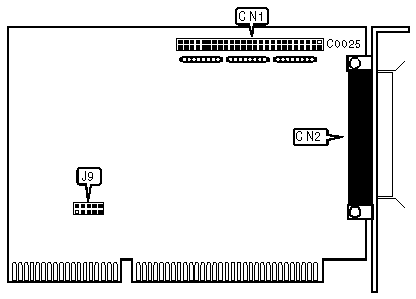

CONNECTIONS | |
|
Function |
Location |
|
50-pin SCSI cable connector-internal |
CN1 |
|
50-pin SCSI cable connector-external |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
I/O port address 340h |
J9/jumper 5 |
open |
|
I/O port address 140h |
J9/jumper 5 |
closed | |
|
Note:If the secondary address, 140h, is selected, the option must be set accordingly in ASPI.SYS. | |||
|
INTERRUPT REQUEST | |||||
|
Select |
J9/jumper 1 |
J9/jumper 2 |
J9/jumper 3 |
J9/jumper 4 | |
| » |
IRQ11 |
open |
closed |
open |
open |
|
IRQ12 |
closed |
open |
open |
open | |
|
IRQ10 |
open |
open |
closed |
open | |
|
IRQ9 |
open |
open |
open |
closed | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
The SCSI Disconnection, SCSI Address, SCSI Parity, Sync. Negotiation, I/O Port Address, and Data Transfer Mode options are set by the software driver, ASPI.SYS. |
