ATC/UNITRON COMPUTERS & COMPUTER PARTS
Q LOGIC CORPORATION
FAST!SCSI IQ PCI REV. A
|
| |
|
Data bus: |
PCI |
|
Size: |
Half-length, full-height card |
|
Hard drive supported: |
Up to fifteen SCSI devices |
|
Floppy drives supported: |
N/A |
|

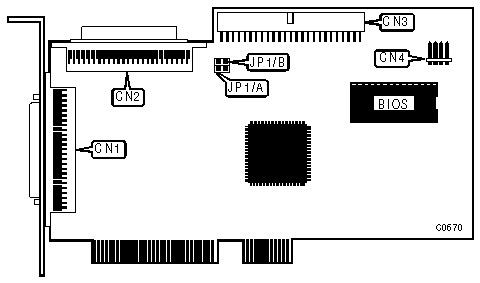

CONNECTIONS | |
|
Function |
Location |
|
68-pin SCSI port external |
CN1 |
|
68-pin SCSI port internal |
CN2 |
|
50-pin SCSI port internal |
CN3 |
|
4-pin connector - Drive active LED |
CN4 |
|
TERMINATION POWER SELECT | ||
|
Setting |
JP1/A |
JP1/B |
|
SCSI Termination enabled |
open |
open |
|
SCSI Termination - low order byte disabled |
open |
closed |
|
SCSI Termination - low & high order byte disabled |
closed |
closed |
