Data bus:	32-bit EISA
Size:	Three/quarter-length, full-height card
Hard drive supported:	Up to fifteen SCSI devices
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

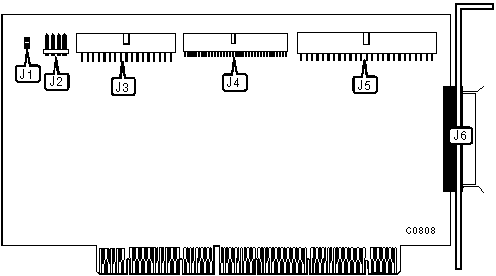

CONNECTIONS
Function	Location
4-pin connector - drive active LED	J2
34-pin floppy drive connector	J3
68-pin wide SCSI connector - internal	J4
50-pin SCSI connector - internal	J5
68-pin wide SCSI connector - external	J6

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Floppy drive controller enabled	J1	closed
	Floppy drive controller disabled	J1	open

MISCELLANEOUS TECHNICAL NOTES

Only single-ended SCSI devices can be connected to 2742W. Only two of the three SCSI connector can be used at any given time.
