Data bus:	16-bit ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE(AT) drives
Floppy drives supported:	None

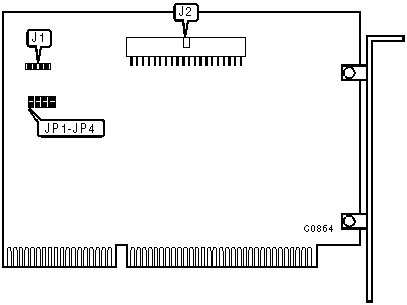

CONNECTIONS
Function	Location
4-pin connector - drive active LED	J1
40-pin IDE(AT) connector	J2

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	IDE primary address is 1F0h	JP1	open
	IDE secondary address is 170h	JP1	closed
»	IOCHRDY signal enabled	JP2	closed
	IOCHRDY signal disabled	JP2	open
»	Factory configured - do not alter	JP3	N/A
»	Factory configured - do not alter	JP4	N/a

MISCELLANEOUS TECHNICAL NOTES

The 8302 supports two types of drives: Conner CP344 & Miniscribe 8051A.
