BUSLOGIC, INC.
FLASHPOINT LW HOST ADAPTER
|
Data Bus |
32-bit PCI |
|
Card Size |
Half-length, half-height card |
|
Hard Drives supported |
Up to 7 SCSI or 15 Wide SCSI devices |
|
Floppy drives supported |
None |
|

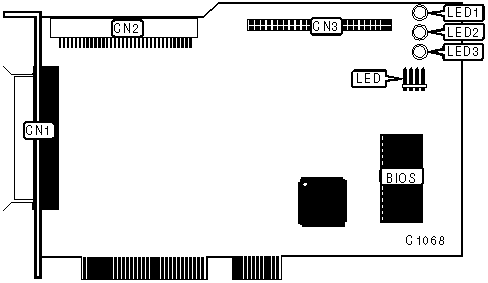

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
68-pin SCSI connector - external |
CN1 |
50-pin SCSI connector - internal |
CN3 |
|
68-pin SCSI connector - internal |
CN2 |
LED connector |
LED |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
On |
Activity detected |
|
LED1 |
Unidentified |
Off |
Activity not detected |
|
LED2 |
Green |
On |
Low termination enabled |
|
LED2 |
Green |
Off |
Low termination disabled |
|
LED3 |
Green |
On |
High termination enabled |
|
LED3 |
Green |
Off |
High termination disabled |
|
TECHNICAL NOTES |
|
Note: The FlashPoint LW host adapter automatically configures its own termination according to its placement within the SCSI bus. The low termination LED indicates that bits 0-7 of SCSI bus are terminated on the board. The high termination LED indicates that bits 8-15 of SCSI bus are terminated. Note: Only two connectors may be used at one time. |
