BUSLOGIC, INC.
FLASHPOINT DL HOST ADAPTER
|
Data Bus |
32-bit PCI |
|
Card Size |
Half-length, half-height card |
|
Hard Drives supported |
Up to 14 Fast SCSI-2/Ultra SCSI devices (7 on each channel) |
|
Floppy drives supported |
None |
|

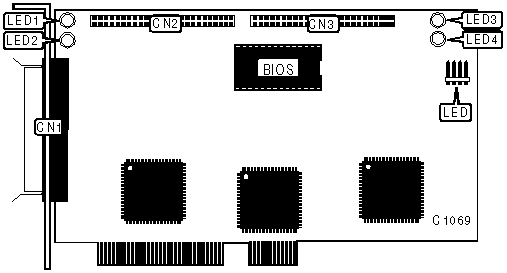

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
50-pin SCSI connector - external, channel 0 |
CN1 |
50-pin SCSI connector - internal, channel 1 |
CN3 |
|
50-pin SCSI connector - internal, channel 0 |
CN2 |
4-pin connector - drive active LED |
LED |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
On |
Activity detected on channel 0 |
|
LED1 |
Unidentified |
Off |
Activity not detected on channel 0 |
|
LED2 |
Green |
On |
Termination enabled on channel 0 |
|
LED2 |
Green |
Off |
Termination disabled on channel 0 |
|
LED3 |
Unidentified |
On |
Activity LED detected on channel 1 |
|
LED3 |
Unidentified |
Off |
Activity LED not detected on channel 1 |
|
LED4 |
Green |
On |
Termination enabled on channel 1 |
|
LED4 |
Green |
Off |
Termination disabled on channel 1 |
