Card Type	Hard drive controller card
Hard Drives supported	Up to 15 UltraSCSI Fast & Wide devices
Floppy drives supported	None
Data Bus	32-bit PCI
Card Size	Half-length, full-height card

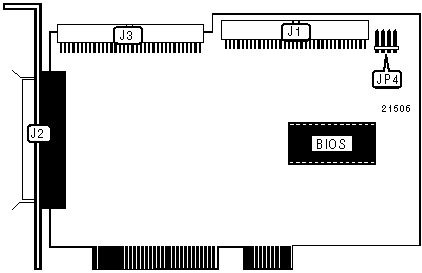

CONNECTIONS
Function	Location	Function	Location
50-pin SCSI connector - internal	J1	68-pin SCSI connector - internal	J3
68-pin SCSI connector - external	J2	4-pin connector - drive active LED	JP4

MISCELLANEOUS TECHNICAL NOTES

Only two SCSI connectors (J1 & J2, J2 & J3, or J3 & J1) can be used at one time.
