COMPUTER ELEKTRONIK INFOSYS / TOOLMAKER, INC.
C5630, TIE-200
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Half-length, full-height card |
|
Hard drives supported: |
UP to seven SCSI devices |
|
Floppy drives supported: |
None |
|

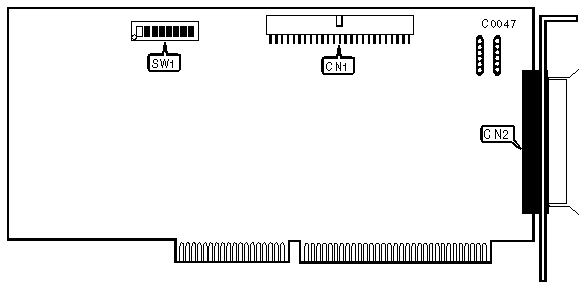

CONNECTIONS | |
|
Function |
Location |
|
50-pin SCSI connector-internal |
CN1 |
|
50-pin SCSI connector-external |
CN2 |
|
I/O PORT ADDRESS | |||
|
Address |
SW1/switch 1 |
SW1/switch 2 | |
| » |
320h |
on |
on |
|
330h |
off |
on | |
|
340h |
on |
off | |
|
Disabled |
off |
off | |
|
INTERRUPT REQUEST | |||
|
IRQ |
SW1/switch 3 |
SW1/switch 4 | |
| » |
IRQ5 |
on |
on |
|
IRQ10 |
off |
on | |
|
IRQ11 |
on |
off | |
|
IRQ15 |
off |
off | |
|
BIOS ADDRESS | |||||
|
Address |
SW1/switch 5 |
SW1/switch 6 |
SW1/switch 7 |
SW1/switch 8 | |
| » |
Disabled |
on |
on |
on |
on |
|
C000:0000h |
on |
on |
on |
off | |
|
C000:4000h |
on |
on |
off |
off | |
|
C000:8000h |
on |
off |
on |
off | |
|
C000:C000h |
on |
off |
off |
off | |
|
D000:0000h |
off |
on |
on |
off | |
|
D000:4000h |
off |
on |
off |
off | |
|
D000:8000h |
off |
off |
on |
off | |
|
D000:C000h |
off |
off |
off |
off | |
