DATA TECHNOLOGY CORPORATION
DTC5150XL, DTC5160XL
|
|
Data bus: 8-bit, ISA
Size: Half-length, full-height card
Hard drives supported: DTC5150XL: Two MFM ST506/412 drives
DTC5160XL: Two RLL ST506/412 drives
with 17, 32, or 60 sector mapping
Floppy drives supported: None
|

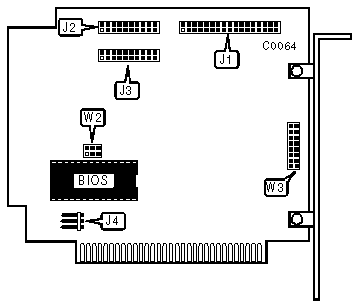

CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connector-hard drive |
J1 |
|
20-pin data cable connector-drive (logical LUN determined by drive setting) |
J2 |
|
20-pin data cable connector-drive (logical LUN determined by drive setting) |
J3 |
|
3-pin connector-drive active LED |
J4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
I/O port address 320-323h |
W2/jumper 4 |
closed |
|
I/O port address 324-327h |
W2/jumper 4 |
open | |
| » |
CXD BIOS drive type selection (see tables with DTC5150X for drive types) |
W3 (5150XL only) |
see CXD drive type table |
|
BIOS drive type selected at low-level (see table DTC5150X for drive types) |
W3 (5150XL only) |
see CXD drive type table | |
|
BIOS ADDRESS | ||||
|
Address |
W2/jumper 1 |
W2/jumper 2 |
W2/jumper 3 | |
| » |
C8000h |
closed |
closed |
closed |
|
CA000h |
closed |
closed |
open | |
|
D8000h |
closed |
open |
closed | |
|
F4000h |
closed |
open |
open | |
|
Disabled |
open |
closed |
closed | |
|
DRIVE TYPE SELECTION FOR THE DTC5150XL- W3 | ||||
|
CXD Drive Types |
Jumper 1 Drv. 1 Jumper 3 Drv. 0 |
Jumper 2 Drv. 1 Jumper 4 Drv. 0 |
Jumper 5 Drv. 1 Jumper 7 Drv. 0 |
Jumper 6 Drv. 1 Jumper 8 Drv. 0 |
|
0 |
closed |
closed |
closed |
closed |
|
1 |
open |
closed |
closed |
closed |
|
2 |
closed |
open |
closed |
closed |
|
3 |
open |
open |
closed |
closed |
|
4 |
closed |
closed |
open |
closed |
|
5 |
open |
closed |
open |
closed |
|
6 |
closed |
open |
open |
closed |
|
7 |
open |
open |
open |
closed |
|
8 |
closed |
closed |
closed |
open |
|
9 |
open |
closed |
closed |
open |
|
10 |
closed |
open |
closed |
open |
|
11 |
open |
open |
closed |
open |
|
12 |
closed |
closed |
open |
open |
|
13 |
open |
closed |
open |
open |
|
14 |
closed |
open |
open |
open |
|
15 |
open |
open |
open |
open |
