DATA TECHNOLOGY CORPORATION
DTC5187I, DTC7187
|
|
Data bus: 16-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two RLL 2,7 ST506/412 drives with 17, 32, 60 sector mapping
Floppy drives supported: None
Sector interleave: DTC5187i: 2:1
DTC7187i: 1:1
|

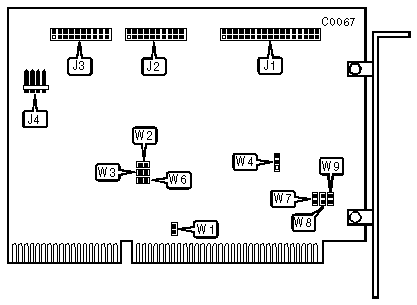

CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connector-hard drive |
J1 |
|
20-pin data cable connector-drive 0 |
J2 |
|
20-pin data cable connector-drive 1 |
J3 |
|
4-pin connector-drive active LED |
J4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Floppy Drive Changed Signal not driven |
W1 |
open |
|
Floppy Drive Changed Signal driven low |
W1 |
closed | |
| » |
Initial interrupt enabled after reset |
W4 |
pins 2 & 3 closed |
|
Initial interrupt disabled after reset |
W4 |
pins 1 & 2 closed | |
| » |
Auto-deselect enabled |
W6 |
closed |
|
Auto-deselect disabled |
W6 |
open | |
| » |
Normal operation mode |
W7 |
closed |
|
Internal use mode |
W7 |
open | |
| » |
BIOS enabled |
W8 |
closed |
|
BIOS disabled |
W8 |
open | |
| » |
BIOS address is C800:0000 to C800:3FFFh |
W9 |
open |
|
BIOS address is D800:0000 to D800:3FFFh |
W9 |
closed | |
|
HARD DRIVE PORT ADDRESS | |||
|
Address |
W2 |
W3 | |
| » |
Port addresses are 1F0-1F7 3F6-3F7h |
open |
open |
|
Port addresses are 170-177 376-377h |
closed |
closed | |
