Data bus:	16-bit ISA
Size:	Three-quarter length, full-height card
Hard drive supported:	2 IDE(AT) interface drives
Floppy drives supported:	360KB, 720KB, 1.2MB, 1.44MB

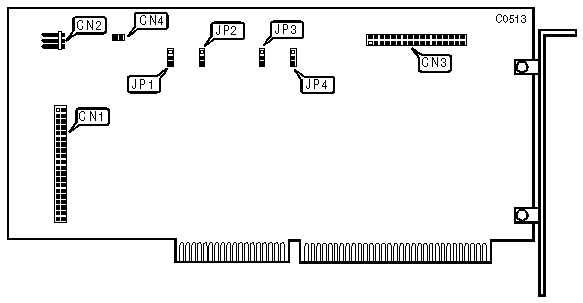

CONNECTIONS
Function	Location
40-pin IDE(AT) interface connector	CN1
External power connector	CN2
34-pin control cable connector - floppy drive	CN3
External drive active LED connector	CN4

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Floppy drive interface primary address select(3Fxh)	JP1	pins 1 & 2 closed
	Floppy drive interface alternate address select(37xh)	JP1	pins 2 & 3 closed
»	IDE(AT) interface primary address select(1Fxh)	JP2	pins 1 & 2 closed
	IDE(AT) interface alternate address select(17xh)	JP2	pins 2 & 3 closed
»	Floppy drive interface disabled	JP3	pins 1 & 2 closed
	Floppy drive interface enabled	JP3	open
»	IDE(AT) interface enabled	JP4	pins 2 & 3 closed
	IDE(AT) interface disabled	JP4	pins 1 & 2 closed
