Card Type	Hard drive controller card
Processor	80486 DX2 66
Processor Speed	Unidentified
Maximum Onboard Memory	64MB DRAM
Hard Drives supported	Up to 35 SCSI devices
Floppy drives supported	None
Form factor	3.5"
Bus type	External

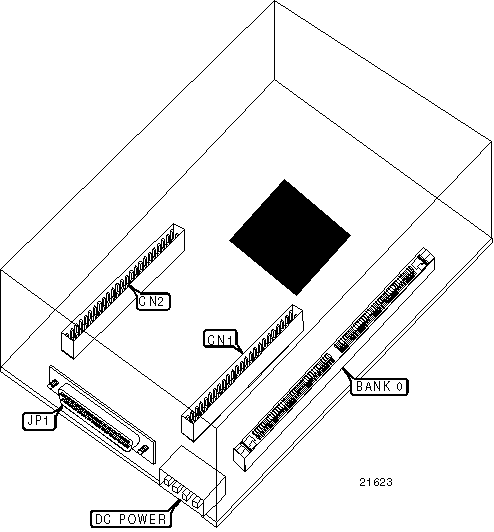

CONNECTIONS
Function	Location	Function	Location
Daughter board connector	CN1	SCSI channel 0 connector	JP1
Daughter board connector	CN2

DRAM CONFIGURATION
Size	BANK 0
4MB	(1) 1MB X 36
8MB	(1) 2MB X 36
16MB	(1) 4MB X 36
32MB	(1) 8MB X 36
64MB	(1) 16MB X 36

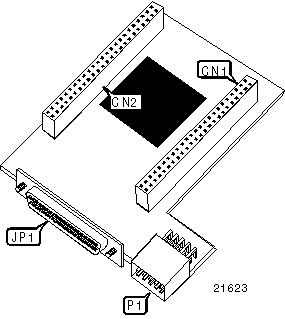

CONNECTIONS
Function	Location	Function	Location
Daughter board connector	CN1	SCSI channel 2 connector	JP1
Daughter board connector	CN2	Failover Port	P1
