FUTURE DOMAIN CORPORATION
TMC-820
|
|
Data bus: 8-bit, ISA
Size: Three-quarter length, full-height card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: None
|
CONNECTIONS | |
|
Function |
Location |
|
50-pin SCSI Interface connector-internal |
CN1 |
|
50-pin proprietary SCSI Interface connector- external |
CN2 |
|

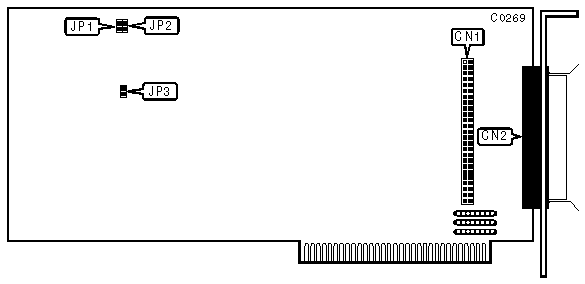

USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Zero Wait State disabled |
JP3 |
open |
|
Zero Wait State enabled |
JP3 |
closed | |
|
BIOS ADDRESS | |||
|
Address |
JP1 |
JP2 | |
| » |
CA00h |
open |
open |
|
C800h |
open |
closed | |
|
CE00h |
closed |
open | |
|
DE00h |
closed |
closed | |
