FUTURE DOMAIN CORPORATION
MCS-700
|
|
Data bus: 16-bit, MCA
Size: Full-length card
Hard drives supported: Up to six SCSI devices
Floppy drives supported: None
Sector interleave: 1:1
|

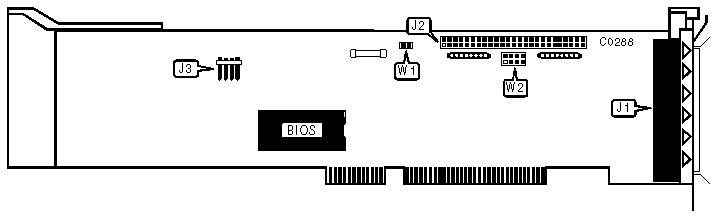

CONNECTIONS | |
|
50-pin SCSI connector-external |
J1 |
|
50-pin SCSI connector-internal |
J2 |
|
4-pin connector-DC power (Solder Mount version only) |
J3 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Location |
Setting |
|
Termination power supplied to bus |
W1 |
closed |
|
Termination power not supplied to bus |
W1 |
open |
|
Termination enabled |
W2/jumpers 1-4 |
closed |
|
Termination disabled |
W2/jumpers 1-4 |
open |
|
MISCELLANEOUS TECHNICAL NOTES |
|
All configurations are done through the firmware. JP2 is not present on the Surface Mount version |
