EVEREX SYSTEMS, INC.
EV-368
|
Data Bus: |
16-bit ISA |
|
Size: |
Half-length, Full-height card |
|
Hard drives supported: |
Two IDE (AT) Interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

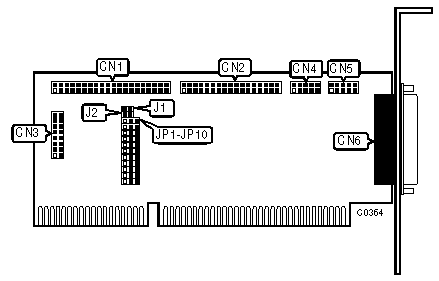

CONNECTIONS | |
|
Function |
Location |
|
40-pin IDE (AT) Interface connector |
CN1 |
|
2-pin connector - Drive active LED |
J2 |
|
34-pin control cable connector - floppy drive |
CN2 |
|
15-pin game port - internal |
CN3 |
|
10-pin serial port (COM1/3) - internal |
CN4 |
|
10-pin serial port (COM2/4) - internal |
CN5 |
|
25-pin parallel port (LPT2/3) external |
CN6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
I/O Channel Ready signal enabled |
J1 |
Closed |
|
I/O Channel Ready signal disabled |
J1 |
Open | |
| » |
Serial port 2 (CN5) is set to COM2 |
JP1 |
Pins 1 & 2 closed |
|
Serial port 2 (CN5) is set to COM4 |
JP1 |
Pins 2 & 3 closed | |
| » |
Serial port 2 (CN5) enabled |
JP2 |
Pins 1 & 2 closed |
|
Serial port 2 (CN5) disabled |
JP2 |
Pins 2 & 3 closed | |
| » |
Game port (CN3) enabled |
JP3 |
Pins 1 & 2 closed |
|
Game port (CN3) disabled |
JP3 |
Pins 2 & 3 closed | |
| » |
Serial port 1 (CN4) is set to COM1 |
JP4 |
Pins 1 & 2 closed |
|
Serial port 1 (CN4) is set to COM4 |
JP4 |
Pins 2 & 3 closed | |
| » |
Printer port is set to LPT2 |
JP5 |
Pins 1 & 2 closed |
|
Printer port is set to LPT3 |
JP5 |
Pins 2 & 3 closed | |
| » |
Serial port 1 (CN4) enabled |
JP6 |
Pins 1 & 2 closed |
|
Serial port 1 (CN4) disabled |
JP6 |
Pins 2 & 3 closed | |
| » |
Floppy drive enabled |
JP7 |
Pins 1 & 2 closed |
|
Floppy drive disabled |
JP7 |
Pins 2 & 3 closed | |
| » |
Hard drive controllers exist |
JP8 |
Pins 1 & 2 closed |
|
Hard drive controllers do not exist |
JP8 |
Pins 2 & 3 closed | |
| » |
Hard drive enabled |
JP9 |
Pins 1 & 2 closed |
|
Hard drive disabled |
JP9 |
Pins 2 & 3 closed | |
| » |
Printer port enabled |
JP10 |
Pins 1 & 2 closed |
|
Printer port disabled |
JP10 |
Pins 2 & 3 closed | |
