Data bus:	32-bit, VL-bus
Size:	Three/quarter-length, half-height card
Hard drive supported:	Up to fourteen SCSI devices
Floppy drives supported:	360KB, 720KB, 1.2MB, or 1.44MB drives

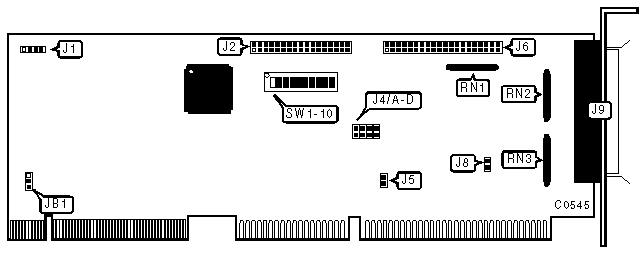

CONNECTIONS
Function	Location
4-pin connector - drive active LED	J1
34-pin control cable connector - floppy drive	J2
50-pin SCSI connector - internal	J6
50-pin SCSI connector - external	J9
SCSI terminator	RN1
SCSI terminator	RN2
SCSI terminator	RN3

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	SCSI I/O port address = 340h - 35Fh	SW1	On
	SCSI I/O port address = 140h - 15Fh	SW1	Off
»	BIOS enabled	SW2	On
	BIOS disabled	SW2	Off
»	Floptical/SCSI floppy BIOS support disabled	SW7	Off
	Floptical/SCSI floppy BIOS support enabled	SW7	On
»	HD > 1GB or floptical/SCSI floppy support disabled	SW8	Off
	HD > 1GB or floptical/SCSI floppy support enabled	SW8	On
»	SCSI synchronous negotiation enabled	SW9	On
	SCSI synchronous negotiation disabled	SW9	Off

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	SCSI disconnect enabled	SW10	On
	SCSI disconnect disabled	SW10	Off
	Floppy controller enabled	J5	Closed
	Floppy controller disabled	J5	Open
»	Normal use and support disk utility	J8	Open
	HD > 1GB or floptical/SCSI floppy support enabled	J8	Closed
»	Mother board has ID3 jumper or synchronize local delay	JB1	pins 2 & 3 closed
	No ID3 jumper or synchronize local delay on mother board	JB1	pins 1 & 2 closed

BIOS ADDRESS SELECT
Address		SW3	SW4
»	DC000h	On	On
	D8000h	Off	On
	CC000h	On	Off
	C8000h	Off	Off

SCSI INTERRUPT REQUEST
IRQ		J4/A	J4/B	J4/C	J4/D	SW5	SW6
»	IRQ11	Open	Open	Closed	Open	Off	On
	IRQ9	Closed	Open	Open	Open	Off	Off
	IRQ10	Open	Closed	Open	Open	On	Off
	IRQ12	Open	Open	Open	Closed	On	On
