Data bus:	16-bit, ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE (AT) interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

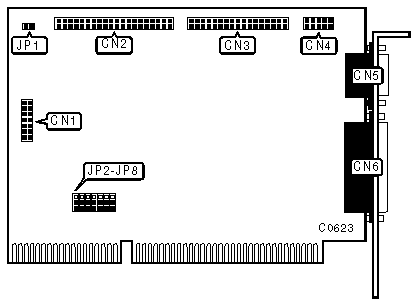

CONNECTIONS
Function	Location
Game port	CN1
40-pin IDE (AT) Interface connector	CN2
34-pin control cable connector - floppy drive	CN3
10-pin serial port 2 -internal	CN4
9-pin serial port 1 - external	CN5
25-pin parallel port	CN6
2-pin connector - drive active LED	JP1

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Serial port 1 enabled	JP2	Pins 1 & 2 closed
	Serial port 1 disabled	JP2	Pins 2 & 3 closed
»	Game port enabled	JP3	Pins 1 & 2 closed
	Game port disabled	JP3	Pins 2 & 3 closed
»	Primary floppy drive address selected	JP4	Pins 1 & 2 closed
	Secondary floppy drive address selected	JP4	Pins 2 & 3 closed
»	Parallel port is LPT2	JP5	Pins 1 & 2 closed
	Parallel port is LPT3	JP5	Pins 2 & 3 closed

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	IDE port enabled	JP6	Pins 1 & 2 closed
	IDE port disabled	JP6	Pins 2 & 3 closed
	Serial port 2 enabled	JP7	Pins 1 & 2 closed
	Serial port 2 disabled	JP7	Pins 2 & 3 closed
»	Primary address for serial ports selected	JP8	Pins 1 & 2 closed
	Secondary address for serial ports selected	JP8	Pins 2 & 3 closed
