Data bus:	16-bit, ISA
Size:	Half-length, half-height card
Hard drive supported:	Two IDE (AT) Interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

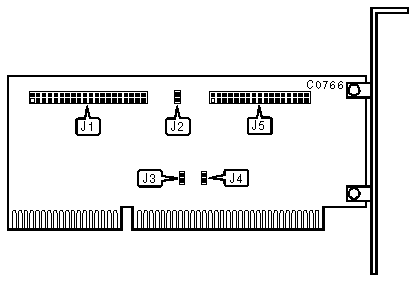

CONNECTIONS
Function	Location
40-pin IDE (AT) Interface connector	J1
2-pin connector-drive active LED	J2
34-pin control cable-connector - floppy drive	J5

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Hard drive enabled	J3	closed
	Hard drive disabled	J3	open
»	Floppy drive enabled	J4	closed
	Floppy drive disabled	J4	open
