Data bus:	32-bit PCI
Size:	Three-quarter length, full-height card
Hard drive supported:	Up to seven Fast SCSI-2 devices
Floppy drives supported:	None

CONNECTIONS
Function	Location
4-pin connector - drive active LED	JP2
50-pin SCSI connector - internal channel 0	JP4
50-pin SCSI connector - external channel 0	JP17
9-pin serial port - external	JP20

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Factory configured - do not alter	JP1	pins 1 & 2 closed
»	Factory configured - do not alter	JP10	open
»	Factory configured - do not alter	JP11	open
»	Factory configured - do not alter	JP15	open

ONBOARD CPU SELECTION
CPU	JP9	JP18
486SX-25	pins 1 & 2 closed	pins 2 & 3 closed
486DX-25	pins 1 & 2 closed	pins 1 & 2, 3 & 4 closed
486SX-33	pins 2 & 3 closed	pins 2 & 3 closed
486DX-33	pins 2 & 3 closed	pins 1 & 2, 3 & 4 closed

DRAM CONFIGURATIONS
Size	Bank 0
2 MBytes	(1) 512K x 36
4 MBytes	(1) 1M x 36
8 MBytes	(1) 2M x 36
16 MBytes	(1) 4M x 36
32 MBytes	(1) 8M x 36
Note: Minimum of 2 MBytes DRAM must be installed with/without parity function. Minimum of 4 MBytes DRAM suggested for RAID-3 and RAID-5 configurations.

MISCELLANEOUS NOTES

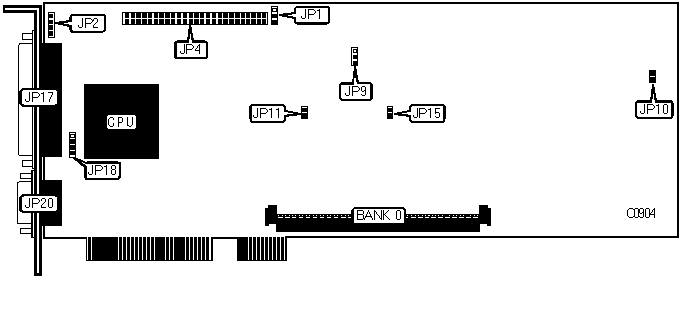

Pin 1 for jumpers JP1, JP9, JP18 are designated for diagram purposes only.
