Card Type

Hard drive controller card

Hard Drives supported

Up to 15 SCSI devices

Floppy drives supported

None

Data Bus

32-bit PCI

Card Size

Half-length, half-height card

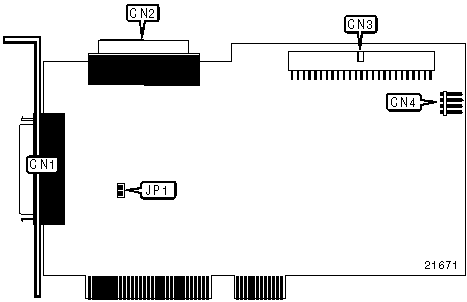

CONNECTIONS

Function

Location

Function

Location

UltraWide SCSI connector - external

CN1

50-pin SCSI connector - internal

CN3

UltraWide SCSI connector - internal

CN2

4-pin connector - drive active LED

CN4

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

JP1

Unidentified
