PROCOMP USA, INC.
S-DCB
|
|
|
Data bus: |
16-bit, ISA |
|
Size: |
Full-length, full-height card |
|
Hard drive supported: |
Up to seven SCSI drives |
|
Floppy drives supported: |
360KB, 720KB, 1.2MB, or 1.44MB (2) |
|

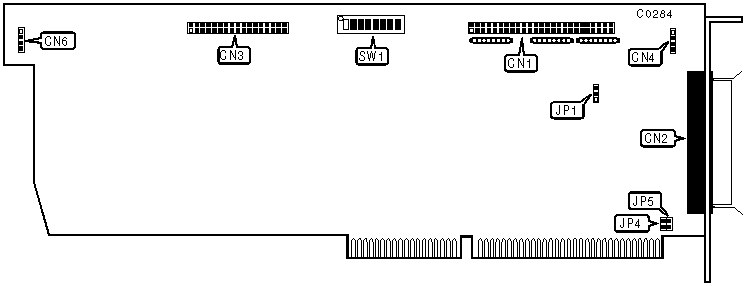

CONNECTIONS | |
|
Purpose |
Location |
|
SCSI drive interface (50 pin) internal |
CN1 |
|
SCSI drive interface (25 pin) external |
CN2 |
|
Floppy drive interface |
CN3 |
|
UPS/status output cable |
CN4 |
|
Hard Drive activity LED |
CN6 |
|
CHANNEL SELECT CONFIGURATION | |||||
|
Channel |
I/O Address |
IRQ |
SW1/switch 1 |
SW1/switch 2 |
SW1/switch 3 |
|
1 |
340h |
IRQ11 |
off |
off |
on |
|
2 |
348h |
IRQ12 |
on |
on |
on |
|
3 |
320h |
IRQ10 |
off |
on |
on |
|
4 |
328h |
IRQ15 |
on |
off |
on |
|
5 |
380h |
IRQ10 |
off |
on |
off |
|
6 |
388h |
IRQ15 |
on |
off |
off |
|
Disabled |
N/A |
N/A |
on |
on |
off |
|
Disabled |
N/A |
N/A |
off |
off |
off |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Controller supplies TERMPWR to SCSI interface 26 |
JP1 |
pins 2 & 3 closed |
|
TERMPWR not supplied to SCSI Interface 26 |
JP1 |
pins 1 & 2 closed | |
| » |
UPS uses open contact to indicate"Battery Low" |
JP4 |
open |
|
UPS uses closed contact to indicate"Battery Low" |
JP4 |
closed | |
| » |
UPS uses open contact to indicate"On-Line" |
JP5 |
open |
|
UPS uses closed contact to indicate"On-Line" |
JP5 |
closed | |
| » |
Floppy drive enabled |
SW1/switch 7 |
on |
|
Floopy drive disabled |
SW1/switch 7 |
off | |
| » |
SCSI parity check enabled |
SW1/switch 8 |
on |
|
SCSI parity check disabled |
SW1/switch 8 |
off | |
|
BIOS ADDRESS CONFIGURATION | |||
|
Address |
SW1/switch 5 |
SW1/switch 6 |
SW1/switch 7 |
|
Disabled |
off |
off |
off |
|
DC00h |
off |
off |
on |
|
DA00h |
off |
on |
off |
|
D800h |
off |
on |
on |
|
CE00h |
on |
off |
off |
|
CCOOh |
on |
off |
on |
|
CA00h |
on |
on |
off |
|
C800h |
on |
on |
on |
