PROMISE TECHNOLOGY, INC.

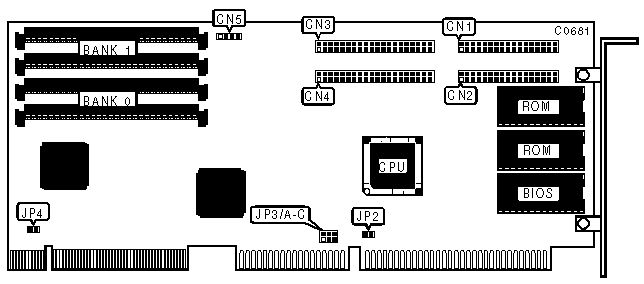

DC-4030VL (REV. 2)
|
| |
|
Data bus: |
VESA local-bus |
|
Size: |
Three/quarter-length, full-height card |
|
Hard drive supported: |
Four IDE (AT) Interface drives |
|
Floppy drives supported: |
Four 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives |
|
CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connector - floppy drive BUS-0 |
CN1 |
|
34-pin control cable connector - floppy drive BUS-1 |
CN2 |
|
40-pin IDE (AT) Interface connector IDE-0 |
CN3 |
|
40-pin IDE (AT) Interface connector IDE-1 |
CN4 |
|
4-pin connector - drive active LED |
CN5 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Floppy drive enabled |
JP2 |
closed |
|
Floppy drive disabled |
JP2 |
open | |
| » |
VESA bus speed normal |
JP4 |
closed |
|
VESA bus speed 50Mhz |
JP4 |
open | |
|
INTERRUPT SELECT | |||
|
IRQ |
JP3/A |
JP3/B |
JP3/C |
|
IRQ12 |
closed |
open |
open |
|
IRQ14 |
open |
closed |
open |
|
IRQ15 |
open |
open |
closed |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
512KB |
(2) 256KB x 9 |
NONE |
|
1MB |
(2) 256KB x 9 |
(2) 256KB x 9 |
|
1.5MB |
(2) 256KB x 9 |
(2) 1MB x 9 |
|
2MB |
(2) 1MB x 9 |
NONE |
|
2.5MB |
(2) 1MB x 9 |
(2) 256KB x 9 |
|
4MB |
(2) 1MB x 9 |
(2) 1MB x 9 |
|
8MB |
(2) 4MB x 9 |
NONE |
|
8.5MB |
(2) 256KB x 9 |
(2) 4MB x 9 |
|
8.5MB |
(2) 4MB x 9 |
(2) 256KB x 9 |
|
10MB |
(2) 1MB x 9 |
(2) 4MB x 9 |
|
10MB |
(2) 4MB x 9 |
(2) 1MB x 9 |
|
16MB |
(2) 4MB x 9 |
(2) 4MB x 9 |
