PATHFINDER PSI-2700

PERCEPTIVE SOLUTIONS, INC.

PATHFINDER PSI-2700

Data bus:

32-bit PCI

Size:

Three-quarter length, full-height card

Hard drive supported:

Up to seven Fast SCSI-2 devices

Floppy drives supported:

None

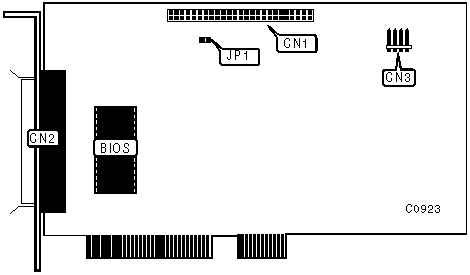

CONNECTIONS

Function

Location

50-pin SCSI connector - internal

CN1

50-pin SCSI connector - external

CN2

4-pin connector - drive active LED

CN3

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»
Active termination enabled

JP1

closed

Active termination disabled

JP1

open

Note: Disable termination if both internal and external devices are used.

Enable termination if Host Adapter is at the end of internal/external device chain.


Data bus:	32-bit PCI
Size:	Three-quarter length, full-height card
Hard drive supported:	Up to seven Fast SCSI-2 devices
Floppy drives supported:	None

CONNECTIONS
Function	Location
50-pin SCSI connector - internal	CN1
50-pin SCSI connector - external	CN2
4-pin connector - drive active LED	CN3

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Active termination enabled	JP1	closed
	Active termination disabled	JP1	open
Note: Disable termination if both internal and external devices are used. Enable termination if Host Adapter is at the end of internal/external device chain.
