SEAGATE TECHNOLOGY, INC.
ST10
Data bus: 8-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two MFM ST506/ST412 drives
Floppy drives supported: None
|

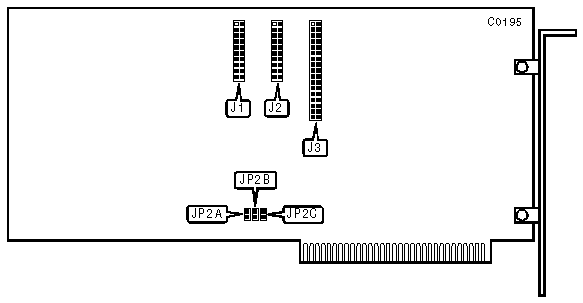

CONNECTIONS | |
|
Function |
Location |
|
20-pin data cable connector-drive 0 |
J1 |
|
20-pin data cable connector-drive 1 |
J2 |
|
34-pin control cable connector-hard drive |
J3 |
|
BIOS ADDRESS | |||
|
Address |
Jumper JP2A |
Jumper JP2B |
Jumper JP2C |
|
C8000h |
closed |
open |
open |
|
D0000h |
closed |
open |
closed |
|
D8000h |
closed |
closed |
open |
|
F4000h |
closed |
closed |
closed |
|
Disabled |
open |
open |
open |
|
MISCELLANEOUS TECHNICAL NOTES |
|
This controller has a built-in low-level format program. To enter the program run the DEBUG utility supplied with DOS and at the prompt enter: G=C800:5. |
