Data Bus:	16-bit ISA
Size:	Half-length, full-height card
Hard drives supported:	IDE (AT) drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

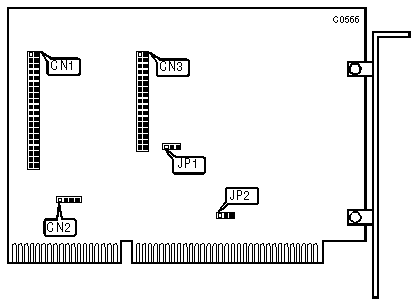

CONNECTIONS
Function	Location
40-pin IDE (AT) interface connector internal	CN1
4-pin connector-drive active LED	CN2
34-pin data cable connector-floppy drive	CN3

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Hard drive enabled	JP1	Pins 1 & 2 closed
	Hard drive disabled	JP1	Pins 2 & 3 closed
»	Floppy drive disabled	JP2	Pins 1 & 2 closed
	Floppy drive enabled	JP2	Pins 2 & 3 closed
