Data bus:	16-bit, ISA
Size:	Half-length, full-height card
Hard drive supported:	Up to seven SCSI devices
Floppy drives supported:	None

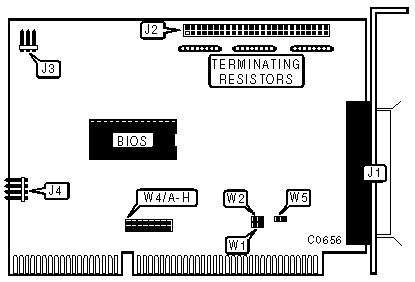

CONNECTIONS
Function	Location
50-pin SCSI connector - external	J1
50-pin SCSI connector - Internal	J2
Power connector	J3
4-pin connector - drive active LED	J4

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Zero Wait State disabled	W5	open
	Zero Wait State enabled	W5	closed

BIOS ADDRESS
Address		W1	W2
»	CA00h	open	open
	C800h	open	closed
	CE00h	closed	open
	DE00h	closed	closed

INTERRUPT SELECT - W4
IRQ		A	B	C	D	E	F	G	H
»	IRQ5	open	open	closed	open	open	open	open	open
	IRQ3	closed	open	open	open	open	open	open	open
	IRQ4	open	closed	open	open	open	open	open	open
	IRQ10	open	open	open	closed	open	open	open	open
	IRQ11	open	open	open	open	closed	open	open	open
	IRQ12	open	open	open	open	open	closed	open	open
	IRQ14	open	open	open	open	open	open	closed	open
	IRQ15	open	open	open	open	open	open	open	opens
