Data bus:	32-bit, VL-Bus
Size:	Three quarter-length, half-height card
Hard drive supported:	Two IDE (AT) interface drives
Floppy drives supported:	360KB, 720KB, 1.2MB, or 1.44MB drives

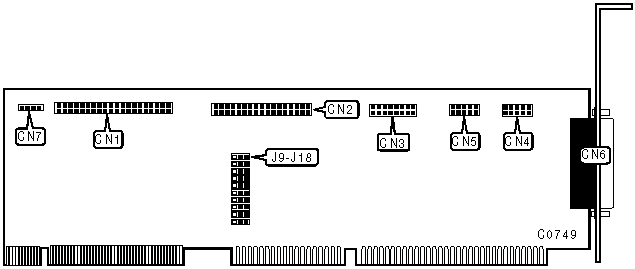

CONNECTIONS
Function	Location
40-pin primary IDE(AT) interface	CN1
34-pin control cable connector - floppy drive	CN2
16-pin Game port	CN3
10-pin serial port 1 - internal	CN4
10-pin serial port 2 - internal	CN5
25-pin parallel port	CN6
4-pin drive active LED	CN7

USER CONFIGURABLE SETTINGS
Function		Location	Setting
	IDE interface enabled	J14	pins 1 & 2 closed
	IDE interface disabled	J14	pins 2 & 3 closed
	Floppy drive interface enabled	J15	pins 1 & 2 closed
	Floppy drive interface disabled	J15	pins 2 & 3 closed
»	Factory configured - do not alter	J16	N/A
	Game port enabled	J18	pins 1 & 2 closed
	Game port disabled	J18	pins 2 & 3 closed

SERIAL PORT 1 CONFIGURATION
COM	J9	J10
COM1	pins 1 & 2 closed	pins 1 & 2 closed
COM3	pins 1 & 2 closed	pins 2 & 3 closed
Disabled	pins 2 & 3 closed	N/A

SERIAL PORT 2 CONFIGURATION
COM	J11	J12
COM2	pins 1 & 2 closed	pins 1 & 2 closed
COM4	pins 1 & 2 closed	pins 2 & 3 closed
Disabled	pins 2 & 3 closed	N/A

PARALLEL PORT CONFIGURATION
LPT	J13	J17
LPT2	pins 1 & 2 closed	pins 1 & 2 closed
LPT3	pins 1 & 2 closed	pins 2 & 3 closed
Disabled	pins 2 & 3 closed	N/A
