Data bus:	16-bit, ISA
Size:	Half-length, half-height card
Hard drive supported:	Two IDE(AT) interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

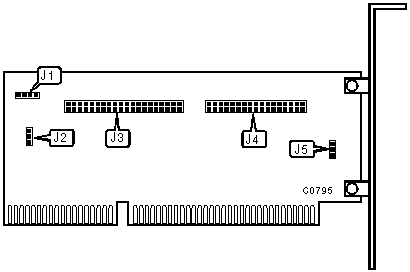

CONNECTIONS
Function	Location
4-pin connector - drive active LED	J1
40-pin IDE(AT) connector	J3
34-pin floppy drive connector	J4

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	IRQ 14 is unbuffered	J2/pins 1 & 2	closed
	IRQ 14 is buffered & delayed	J2/pins 2 & 3	closed
»	Floppy drive primary address is 3F0h	J5/pins 1 & 2	closed
	Floppy drive secondary address is 370h	J5/pins 2 & 3	closed
Note: Location of pin 1 is unidentified.
