Data bus:	16-bit ISA
Size:	Half-length, half-height card
Hard drive supported:	Two IDE(AT) drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

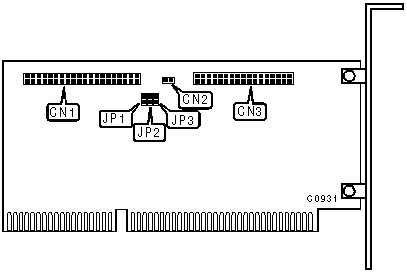

CONNECTIONS
Function	Location
40-pin primary IDE(AT) connector	CN1
2-pin connector - drive active LED	CN2
34-pin cable connector - floppy drive	CN3

USER CONFIGURABLE SETTINGS
Function	Location	Setting
IOCHRDY signal disabled	JP1	open
IOCHRDY signal enabled	JP1	closed
IDE(AT) interface enabled	JP2	open
IDE(AT) interface disabled	JP2	closed
Drive group 1 select	JP3	open
Drive group 2 select	JP3	closed
