Card Type	Sound card
Chip Set	Opti
Maximum Onboard Memory	None
I/O Options	Game/MIDI port, Microphone in, Line in, Line out, Speaker out, CD-ROM connector, wave table synthesizer, CD-Audio in (2), MPEG connector
Data Bus	16-bit ISA

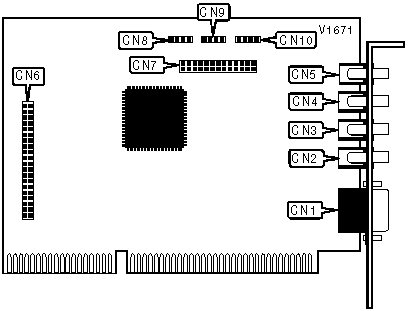

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port	CN1	CD-ROM connector	CN6
Microphone in	CN2	Wave table synthesizer	CN7
Line in	CN3	CD-Audio in	CN8
Line out	CN4	CD-Audio in	CN9
Speaker out	CN5	MPEG connector	CN10
