Card Type	I/O controller
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Terminal connector
Data Bus	MCA
Floppy drives supported	None

CONNECTIONS
Function	Label

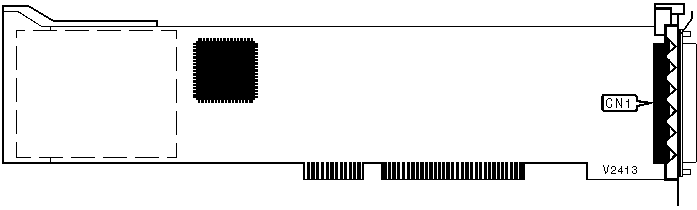

37-pin connector	CN1
Note: CN1 is used to connect the IMP8 & the Terminal Array Panel together for Alloy’s NX386 operating system. The Terminal Array Panel contains eight terminal connectors (DB-9) & eight parallel/serial connectors (DB-25).

MISCELLANEOUS TECHNICAL NOTE

Note: The exact type & amount of memory is unidentified.
