Card Type	Memory card
Maximum Onboard Memory	8MB DRAM
I/O Options	Serial port, parallel port (both on daughterboard)
Data Bus	8/16-bit ISA

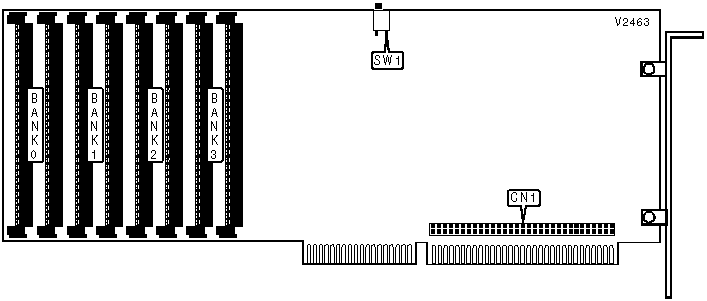

CONNECTIONS
Function	Label
I/O daughterboard header	CN1

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Operate mode	SW1	On
	Reset mode	SW1	Off
Note:SW1 should be turned on for only one SIMMPLY-RAM board per system.

RAM
Size	Bank 0	Bank 1	Bank 2	Bank 3
512KB	(2) 256K x 9	None	None	None
1MB	(2) 256K x 9	(2) 256K x 9	None	None
1.5MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	None
2MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	None	None	None
2.5MB	(2) 1M x 9	(2) 256K x 9	None	None
3MB	(2) 1M x 9	(2) 256K x 9	(2) 256K x 9	None
3.5MB	(2) 1M x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
4MB	(2) 1M x 9	(2) 1M x 9	None	None
4.5MB	(2) 1M x 9	(2) 1M x 9	(2) 256K x 9	None
5MB	(2) 1M x 9	(2) 1M x 9	(2) 256K x 9	(2) 256K x 9
6MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	None
6.5MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 256K x 9
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9
