ACS COMPUTER GROUP
16PNP FD SOUND CARD
|
Card Type |
Sound card |
|
Chipset |
ESS ES1868 |
|
I/O Options |
CD-ROM interface, CD-ROM audio in, game/MIDI port, audio line in (2), microphone in, speaker out, wavetable header |
|
Data Bus |
16-bit ISA |
|

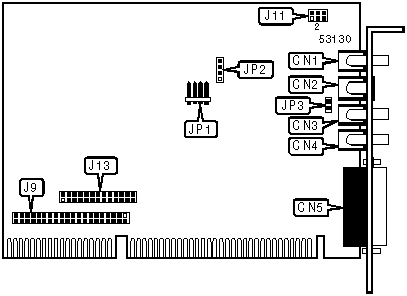

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Audio line out |
CN1 |
IDE CD-ROM interface |
J9 |
|
DC power out |
CN2 |
Wavetable daughterboard header |
J13 |
|
Audio line in |
CN3 |
CD-ROM audio in |
JP1 |
|
Microphone in |
CN4 |
Audio line in |
JP2 |
|
Game/MIDI port |
CN5 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Internal amplifier disabled |
J11 |
Pins 1 & 2, 4 & 5 closed |
|
Internal amplifier enabled |
J11 |
Pins 2 & 3, 5 & 6 closed | |
| » |
CN2 outputs 6V DC |
JP3 |
Closed |
|
CN2 outputs 9V DC |
JP3 |
Open | |
