AZTECH LABS, INC.
SC16-3D, SC16-3D (W)
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
None |
|
I/O Options |
Line in, microphone in, speaker/line out, game/MIDI port, audio in-CD-ROM, wavetable connector |
|
Data Bus |
16-bit ISA |
|

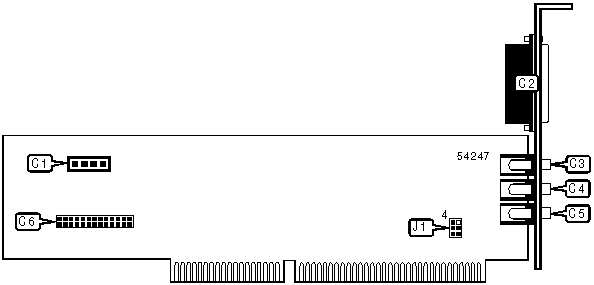

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Audio in-CD-ROM |
C1 |
Microphone in |
C4 |
|
Game/MIDI port |
C2 |
Speaker/line out |
C5 |
|
Line in |
C3 |
Wavetable connector |
C6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Speaker out enabled |
J1 |
Pins 2 & 3 closed |
|
Line out enabled |
J1 |
Unidentified | |
