Card Type	Motion video display card
Chipset/Controller	Chips and Technology
I/O Options	Audio/video in, audio line in (2), speaker, VGA pass-through, video port
Maximum DRAM	N/A

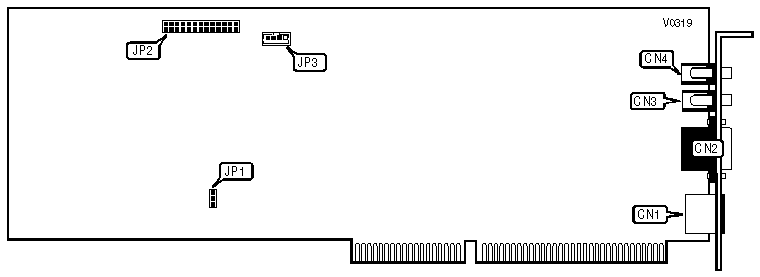

CONNECTIONS
Purpose	Location	Purpose	Location
Audio/video in	CN1	Speaker jack	CN4
15-pin analog video port	CN2	VGA pass-through connector	JP2
Line in	CN3	CD audio cable connector	JP3

I/O ADDRESS CONFIGURATION
Address		JP1
»	0AD6h	Pins 2 & 3 closed
	Software programmable	Pins 1 & 2 closed
