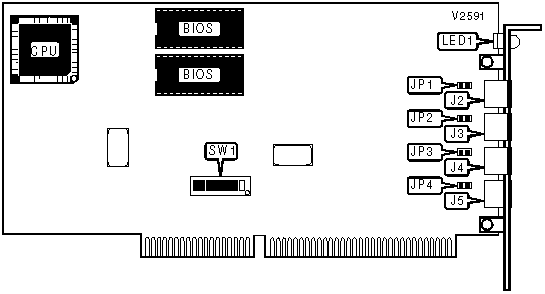

DECISION COMPUTER INTERNATIONAL CO., LTD.
EZCOM 8*4-PORT INTELLIGENT SERIAL
|
Card Type |
Serial |
|
Processor |
AMD NI0C186 |
|
Processor Speed |
Unidentified |
|
Chipset |
AMD |
|
I/O Options |
Serial ports (32) |
|
Data Bus |
16-bit ISA |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Serial ports 1-8 |
J2 |
Serial ports 17-24 |
J4 |
|
Serial ports 9-16 |
J3 |
Serial ports 25-32 |
J5 |
|
Note:Standard DB-25 serial ports are provided on external expansion boxes. | |||
|
USER CONFIGURABLE SETTINGS | ||
|
Setting |
Label |
Position |
|
Expansion box for ports 1-8 draws power from card |
J1 |
Closed |
|
Expansion box for ports 1-8 draws power from external power source |
J1 |
Open |
|
Expansion box for ports 9-16 draws power from card |
J2 |
Closed |
|
Expansion box for ports 9-16 draws power from external power source |
J2 |
Open |
|
Expansion box for ports 17-24 draws power from card |
J3 |
Closed |
|
Expansion box for ports 17-24 draws power from external power source |
J3 |
Open |
|
Expansion box for ports 25-32 draws power from card |
J4 |
Closed |
|
Expansion box for ports 25-32 draws power from external power source |
J4 |
Open |
|
BIOS ADDRESS | ||||||||
|
Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
000000h |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
010000h |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
020000h |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
030000h |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
040000h |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
FB0000h |
On |
On |
Off |
On |
On |
On |
On |
On |
|
FC0000h |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
FD0000h |
On |
Off |
On |
On |
On |
On |
On |
On |
|
FE0000h |
Off |
On |
On |
On |
On |
On |
On |
On |
|
FF0000h |
On |
On |
On |
On |
On |
On |
On |
On |
|
Note: A total of 255 BIOS address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/8 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: SW1/8=8,388,608, SW1/7=4,194,304, SW1/6=2,097,152, SW1/5=1,048,576, SW1/4=524,288, SW1/3=262,144, SW1/2=131,072, SW1/1=65,536. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0) | ||||||||
|
DIAGNOSTIC LED(S) |
|
The function of the LED is unidentified. |
