Card Type	PCMCIA slot controller
Chip Set	Unidentified
Maximum Onboard Memory	N/A
I/O Options	Proprietary PCMCIA interface
Data Bus	16-bit ISA
Floppy drives supported	None

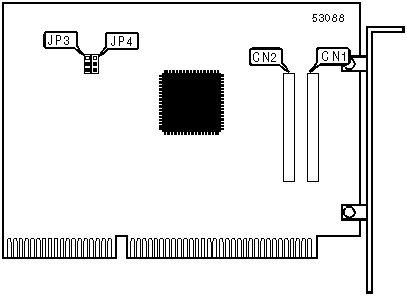

CONNECTIONS
Function	Label	Function	Label
Proprietary interface connector to PCMCIA drive unit	CN1	Proprietary interface connector to PCMCIA drive unit	CN2

MULTI-CARD CONFIGURATION
Setting	Slot #	JP3	JP4
í Card is first in system	1,2	Pins 2 & 3 closed	Pins 2 & 3 closed
Card is second in system	3,4	Pins 2 & 3 closed	Pins 1 & 2 closed
Card is third in system	5,6	Pins 1 & 2 closed	Pins 2 & 3 closed
Card is fourth in system	7,8	Pins 1 & 2 closed	Pins 1 & 2 closed

MISCELLANEOUS TECHNICAL NOTES

Note : The PCD-XX-220 slot controller is a controller card for a PCMCIA drive which has two slots and mounts in a standard floppy bay.
