COROLLARY, INC.
8X4MC
|
Card Type |
Serial |
|
Processor |
80188 |
|
Processor Speed |
10MHz |
|
Chipset |
8530 |
|
Maximum Onboard Memory |
64KB SRAM |
|
I/O Options |
Serial ports (32) |
|
Data Bus |
MCA |
|
Card Size |
Full-height, full-length |
|

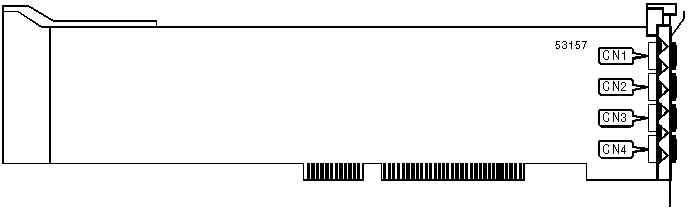

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Serial ports 1-8 |
CN1 |
Serial ports 17-24 |
CN3 |
|
Serial ports 9-16 |
CN2 |
Serial ports 25-32 |
CN4 |
|
Note:Standard RJ-11 serial ports are provided on external expansion boxes. | |||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED |
Red |
On |
Power is on |
|
LED |
Red |
Blinking |
Error has occurred |
|
LED |
Red |
Off |
Power is off |
|
Note:The location of the LED is unidentified. | |||
