CREATIVE LABS, INC.
SOUNDBLASTER PRO MCV (CT5330)
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
None |
|
I/O Options |
Line in connector, microphone in connector, speaker out connector, game/MIDI port, CD-ROM audio in connector, PC internal speaker |
|
Data Bus |
MCA |
|

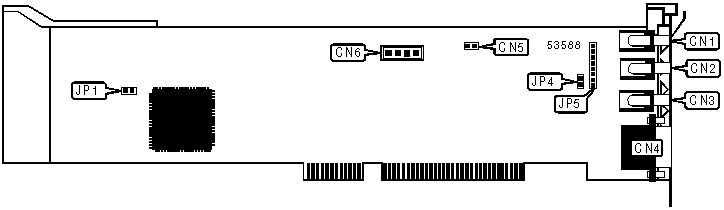

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Line in connector |
CN1 |
Game/MIDI port |
CN4 |
|
Microphone connector |
CN2 |
PC internal speaker |
CN5 |
|
Speaker out connector |
CN3 |
CD-ROM audio in connector |
CN6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
Joystick enabled |
JP1 |
Closed | |
|
Joystick disabled |
JP1 |
Open | |
| » |
Factory configured – do not alter |
JP4 |
Unidentified |
| » |
Factory configured – do not alter |
JP5 |
Unidentified |
