Card Type	Sound card
Chip Set	Creative Technology
Maximum Onboard Memory	Unidentified
I/O Options	CD-ROM interface, microphone connector, line in connector, line out connector, peaker out connector, game/MIDI port, PC internal speaker, CD-ROM audio in connectors (2)
Data Bus	16-bit ISA

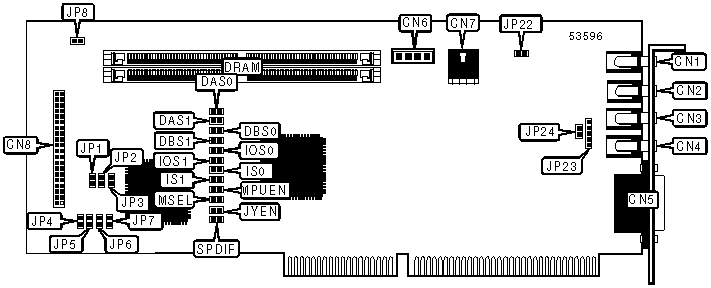

CONNECTIONS
Function	Label	Function	Label
Line in connector	CN1	CD-ROM audio in connector	CN6
Microphone connector	CN2	CD-ROM audio in connector	CN7
Line out connector	CN3	CD-ROM interface	CN8
Speaker out connector	CN4	PC internal speaker	JP22
Game/MIDI port	CN5

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured – do not alter	JP1	Unidentified
»	MP-401 enabled	JP8	Closed
	MP-401 disabled	JP8	Open
»	Factory configured – do not alter	JP23	Unidentified
»	Factory configured – do not alter	JP24	Unidentified
»	Joystick enabled	JYEN	Closed
	Joystick disabled	JYEN	Open
»	Factory configured – do not alter	MPUEN	Unidentified
»	MP-401 I/O address select 330	MSEL	Closed
	MP-401 I/O address select 300	MSEL	Open
»	Factory configured – do not alter	SPDIF	Unidentified

DRAM CONFIGURATION

Note: The maximum amount of onboard memory is unidentified.

8-BIT DMA CHANNEL SELECTION
Channel		DAS0	DAS1
	0	Closed	Closed
»	1	Open	Closed
	3	Closed	Open

16-BIT DMA CHANNEL SELECTION
Channel		DBS0	DBS2
»	5	Closed	Closed
	6	Open	Closed
	7	Closed	Open

INTERRUPT SELECTION
IRQ		IS0	IS1
	2	Closed	Closed
»	5	Open	Closed
	7	Closed	Open
	10	Open	Open

IDE PORT SELECTION
Port		JP2	JP3
	Secondary	Closed	Open
»	Tertiary	Open	Closed
	Quaternary	Open	Open
	Disabled	Closed	Closed

IDE INTERRUPT SELECTION
IRQ	JP4	JP5	JP6	JP7
10	Closed	Open	Open	Open
11	Open	Closed	Open	Open
12	Open	Open	Closed	Open
15	Open	Open	Open	Closed

AUDIO I/O ADDRESS SELECTION
Address		IOS0	IOS1
»	220	Closed	Closed
	240	Open	Closed
	260	Closed	Open
	280	Open	Open
