DARIM VISION CO., LTD.
MPEGATOR (REV. 2.X)
|
Card Type |
MPEG encoder |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
Unidentified |
|
Video Types Supported |
Unidentified |
|
Highest Resolution Supported |
Unidentified |
|
Data Bus |
32-bit PCI |
|

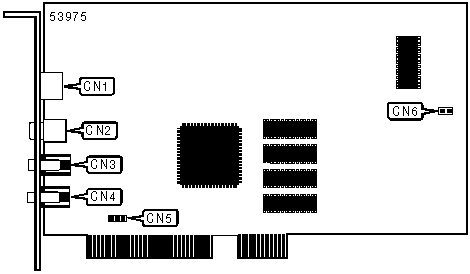

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
S-Video in |
CN1 |
Audio in |
CN4 |
|
RCA jack, Video in |
CN2 |
Auxiliary audio in |
CN5 |
|
Audio out |
CN3 |
Fan power connector |
CN6 |
