EQUINOX SYSTEMS, INC.
MEGAPORT 12CS, MEGAPORT 12FM, MEGAPORT 12LD, MEGAPORT 12LD+12CS, MEGAPORT 24CS, MEGAPORT 24LD
|
Card Type |
Serial |
|
Chip Set |
Unidentified |
|
I/O Options |
Serial ports (12/24), daisy-chain connectors |
|
Data Bus |
16-bit ISA |
|

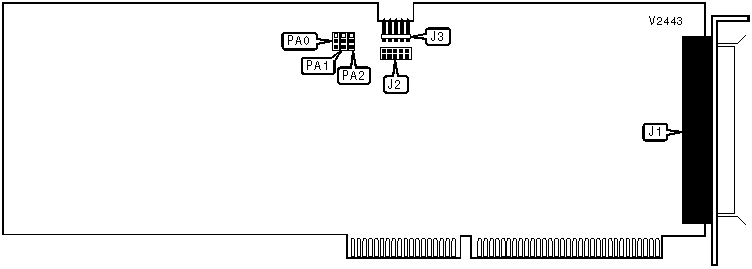

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Serial ports via 100-pin connector |
J1 |
Daisy-chain out |
J3 |
|
Daisy-chain in |
J2 | ||
|
Note:Standard DB-25 or RJ-45 serial ports are provided on an included adapter cable. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Card is installed in ISA slot |
PA0 |
Open |
|
Card is installed in EISA slot |
PA0 |
Pins 1 & 2 closed | |
| » |
Factory configured - do not alter |
PA1 |
Open |
| » |
Factory configured - do not alter |
PA2 |
Open |
