Card Type	Sound card
Chip Set	OTTOA2
Maximum Onboard Memory	Unidentified
I/O Options	Audio line in, Audio line out, CD-ROM connectors (2), Microphone, MIDI/game port, TAD connector, TV tuner/IDE/Sony CD-ROM audio connector
Data Bus	16-bit ISA

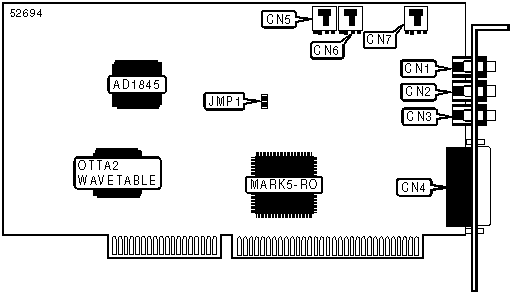

CONNECTIONS
Function	Label	Function	Label
Audio line in	CN1	TAD connector	CN5
Audio line out	CN2	TV tuner/IDE/Sony CD-ROM audio connector	CN6
Microphone	CN3	CD-ROM audio connector	CN7
MIDI/game port	CN4

USER CONFIGURABLE SETTINGS
Function	Label	Position
Phantom power 2.5V supplied to microphone jack	JMP1	Closed
Phantom power 2.5V not supplied to microphone jack	JMP1	Open
