Card Type	Floppy drive controller
Chipset/Controller	Unknown
I/O Options	Floppy drive interface
Maximum DRAM	N/A

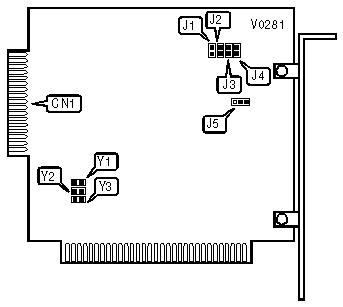

CONNECTIONS
Purpose	Location
Floppy drive interface	CN1

FLOPPY DRIVE CONFIGURATION
	Drive A	Drive B
Drive Type	J1	J2	J3	J4
360KB	N/A	N/A	N/A	N/A
720KB	Open	Closed	Open	Closed
1.2MB	Closed	N/A	Closed	N/A
1.44MB	Open	Open	Open	Open

I/O ADDRESS SELECTION
Address		J5
»	3F0h-3F7h	Pins 1 & 2 closed
	370h-377h	Pins 2 & 3 closed

ROM ADDRESS SELECTION
Address		Y1	Y2	Y3
»	CC000h-CDFFFh	Open	Closed	Open
	CA000h-CBFFFh	Closed	Open	Open
	CE000h-CFFFFh	Open	Open	Closed
