Card Type	Sound card
Chipset Controller	CODEC
I/O Options	CD-ROM audio in (3), CD-ROM interface (4), game/MIDI port, line in, line out, microphone in, speaker out, wavetable connector
Maximum DRAM	N/A

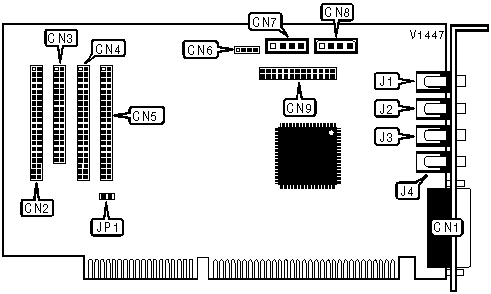

CONNECTIONS
Purpose	Location	Purpose	Location
Game/MIDI port	CN1	Panasonic/Sanyo CD - audio in	CN8
Mitsumi CD-ROM interface	CN2	Wavetable connector	CN9
Sony/Optics CD-ROM interface	CN3	Speaker out	J1
Panasonic/Sanyo CD-ROM interface	CN4	Line out	J2
IDE CD-ROM interface	CN5	Line in	J3
Sony/Optics CD - audio in	CN6	Mic in	J4
Mitsumi CD - audio in	CN7

IDE CD-ROM INTERFACE CONFIGURATION
Setting	JP1
Enabled	Closed
Disabled	Open
