Card Type	Sound card
Chip Set	Unidentified
I/O Options	CD-ROM interface, game/MIDI port, line in (2), microphone in, line out, audio in - CD-ROM (3)
Data Bus	16-bit ISA
Card Size	Three-quarter length, Full-height card

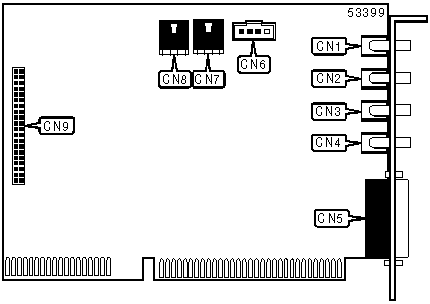

CONNECTIONS
Function	Label	Function	Label
Auxiliary line in	CN1	Audio in - CD-ROM (Panasonic)	CN6
Line in	CN2	Audio in - CD-ROM (IDE)	CN7
Microphone in	CN3	Audio in - CD-ROM (IDE)	CN8
Line out	CN4	CD-ROM interface - IDE	CN9
Game/MIDI port	CN5
