I/OMAGIC CORPORATION
MAGICSOUND-16
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
I/O Options |
CD-ROM interface, line in (2), microphone jack, speaker/line out, game/MIDI port, audio in - CD-ROM (2), wavetable connector |
|
Data Bus |
16-bit ISA |
|
Card Size |
Half-length, full-height card |
|

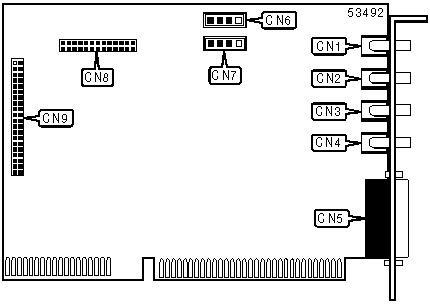

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Auxiliary Line in |
CN1 |
CD-Audio in |
CN6 |
|
Line in |
CN2 |
CD-Audio in |
CN7 |
|
Microphone jack |
CN3 |
Wavetable connector |
CN8 |
|
Speaker/Line out |
CN4 |
CD-ROM interface - IDE |
CN9 |
|
Game/MIDI port |
CN5 | ||
