IBM CORPORATION
APTIVA LEVEL 4 SOUND CARD
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Game/MIDI port, line in, microphone in, audio out, CD-Audio in, PC speaker |
|
Data Bus |
16-bit ISA |
|

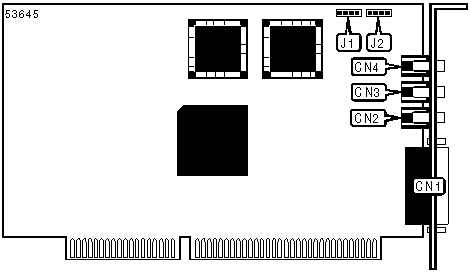

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Game/MIDI port |
CN1 |
Audio out |
CN4 |
|
Line in |
CN2 |
PC speaker |
J1 |
|
Microphone in |
CN3 |
CD-Audio in |
J2 |
