INNOVATIVE INTEGRATION
CADC64 (REV. B)
|
Card Type |
Digital I/O card |
|
I/O Options |
Digital/analog I/O connector, factory test connector, memory expansion connector, serial port, emulation connector |
|
Card Size |
Three-quarter length, full-height card |
|

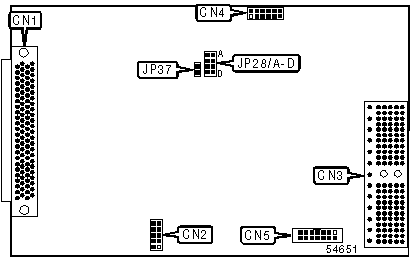

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
100-pin digital/analog I/O connector |
CN1 |
14-pin emulation connector |
CN4 |
|
Factory test connector - Do not use |
CN2 |
14-pin serial connector |
CN5 |
|
Unidentified |
CN3 |
96-pin memory expansion connector |
CN6 |
|
Note: The location of CN6 is unidentified. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
JP37 |
Unidentified |
|
PROCESSOR INTERRUPT SELECTION | ||||
|
Interrupt |
JP28/A |
JP28/B |
JP28/C |
JP28/D |
|
PCI write FIFO empty (INT0) |
Open |
Open |
Open |
Closed |
|
PCI read FIFO full (INT1) |
Open |
Open |
Closed |
Open |
|
Analog converter interrupt (INT2) |
Open |
Closed |
Open |
Open |
|
PCI bus interrupt (INT3) |
Closed |
Open |
Open |
Open |
